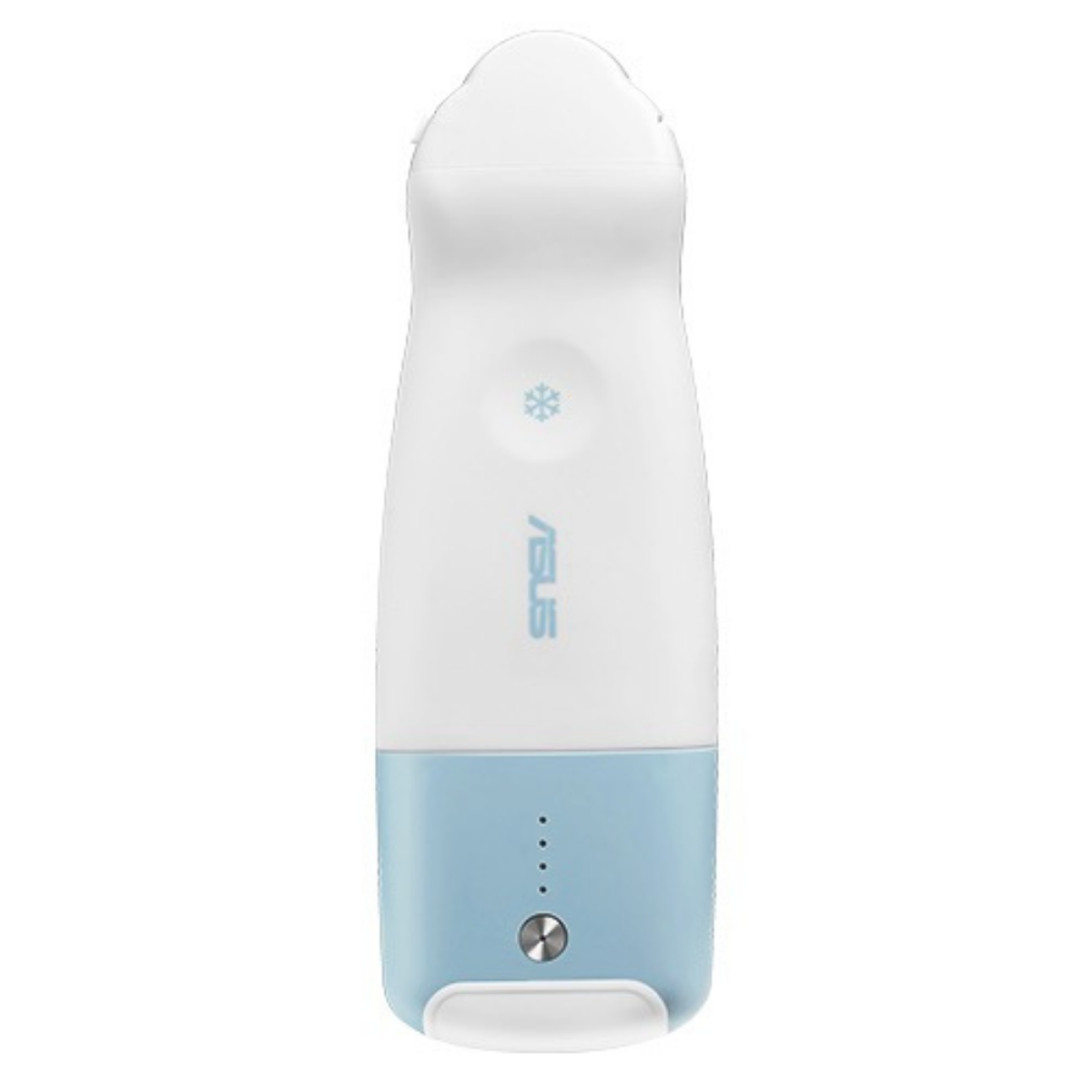

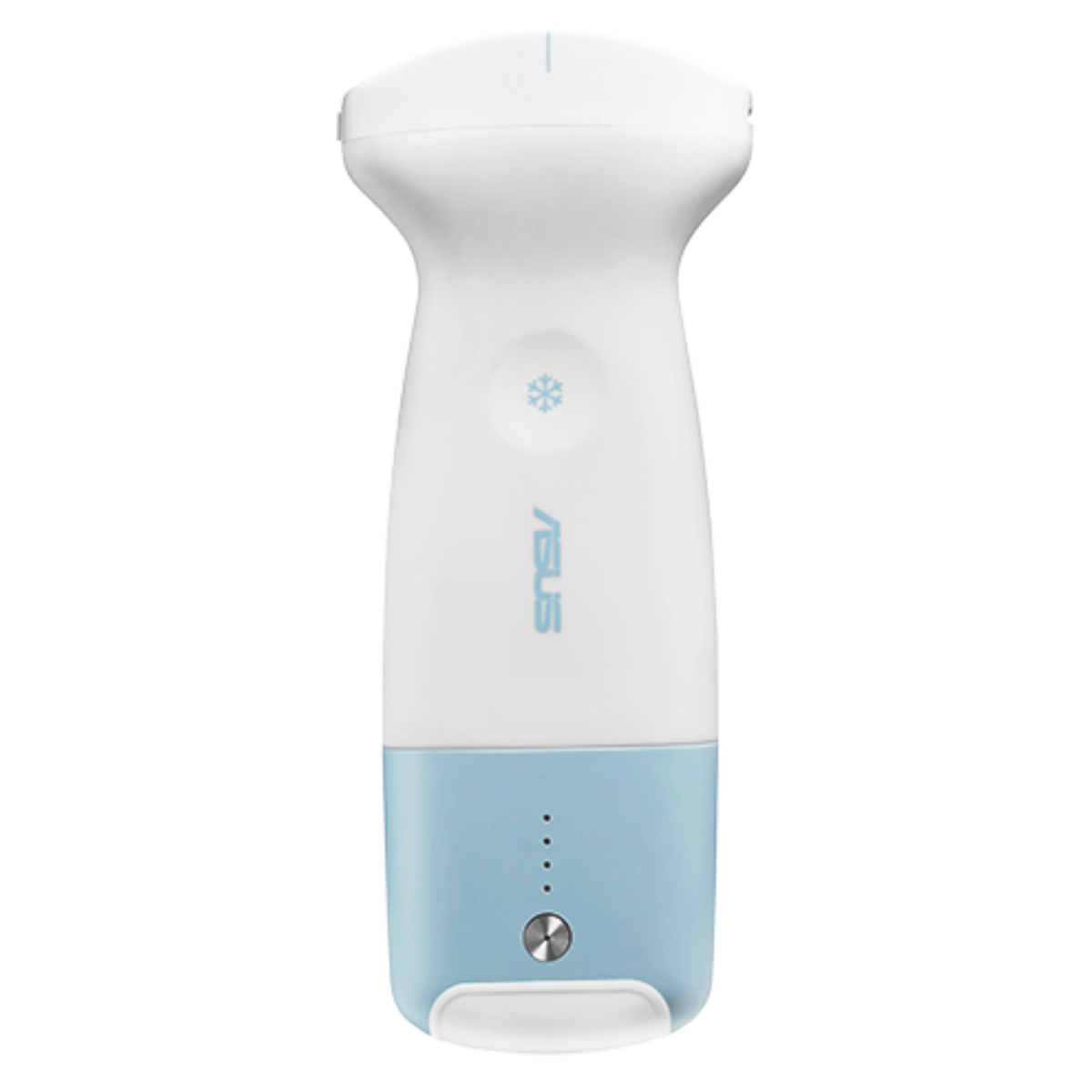

The ASUS Handheld Ultrasound LU800 is a portable, software-based point-of-care ultrasound system. It gives medical professionals the ability to perform ultrasound scans and view high-quality images in real time, supporting clinical assessment across a range of conditions.

The LU800 connects directly to a compatible smartphone, tablet, laptop, or desktop via the ASUS MediConnect App, and is ready to use within moments. Lightweight, compact, and built to withstand clinical environments, it can be deployed in ambulances, operating theatres, clinics, or used for training and education.

Anytime, Anywhere

Ultrasound Scans

Wireless

Long battery life

Lightweight

ASUS MediConnect App

Wireless

Long battery life

Lightweight

MediConnect App

LU800 Series

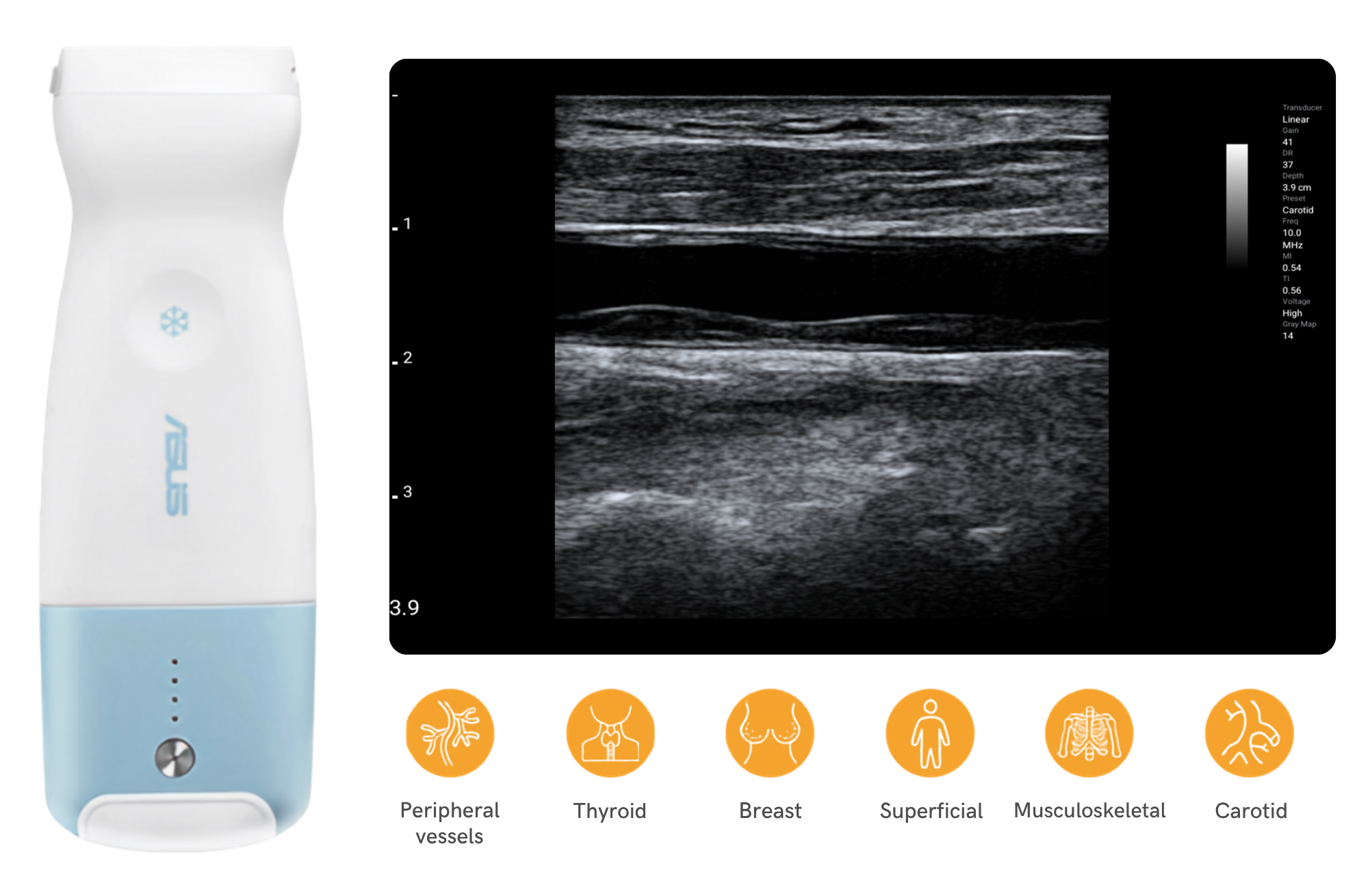

LU800L - Linear

Frequency: 4.2 - 12.5MHz
Max depth: 12.6cm

A high-frequency probe designed for superficial imaging. Ideal for vascular access, musculoskeletal structures, and shallow anatomical assessments where detail close to the skin surface matters.

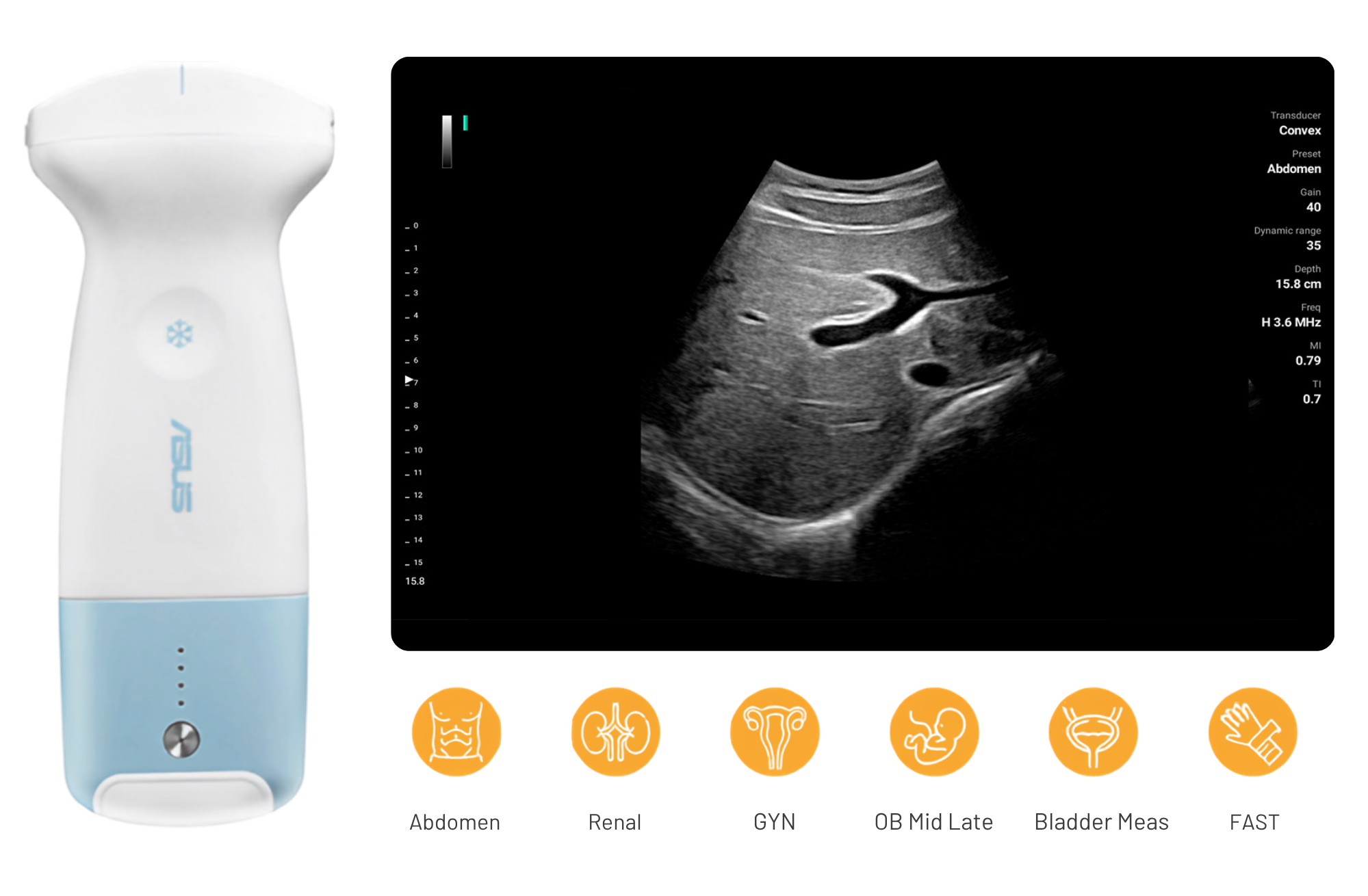

LU800C - Convex

Frequency: 2 - 5MHz
Max depth: 30cm
Field of view: 60°

A wide-field, lower-frequency probe built for deeper imaging. Suitable for abdominal scans, obstetric and gynecological assessments, and general-purpose examinations that require a broader field of view.

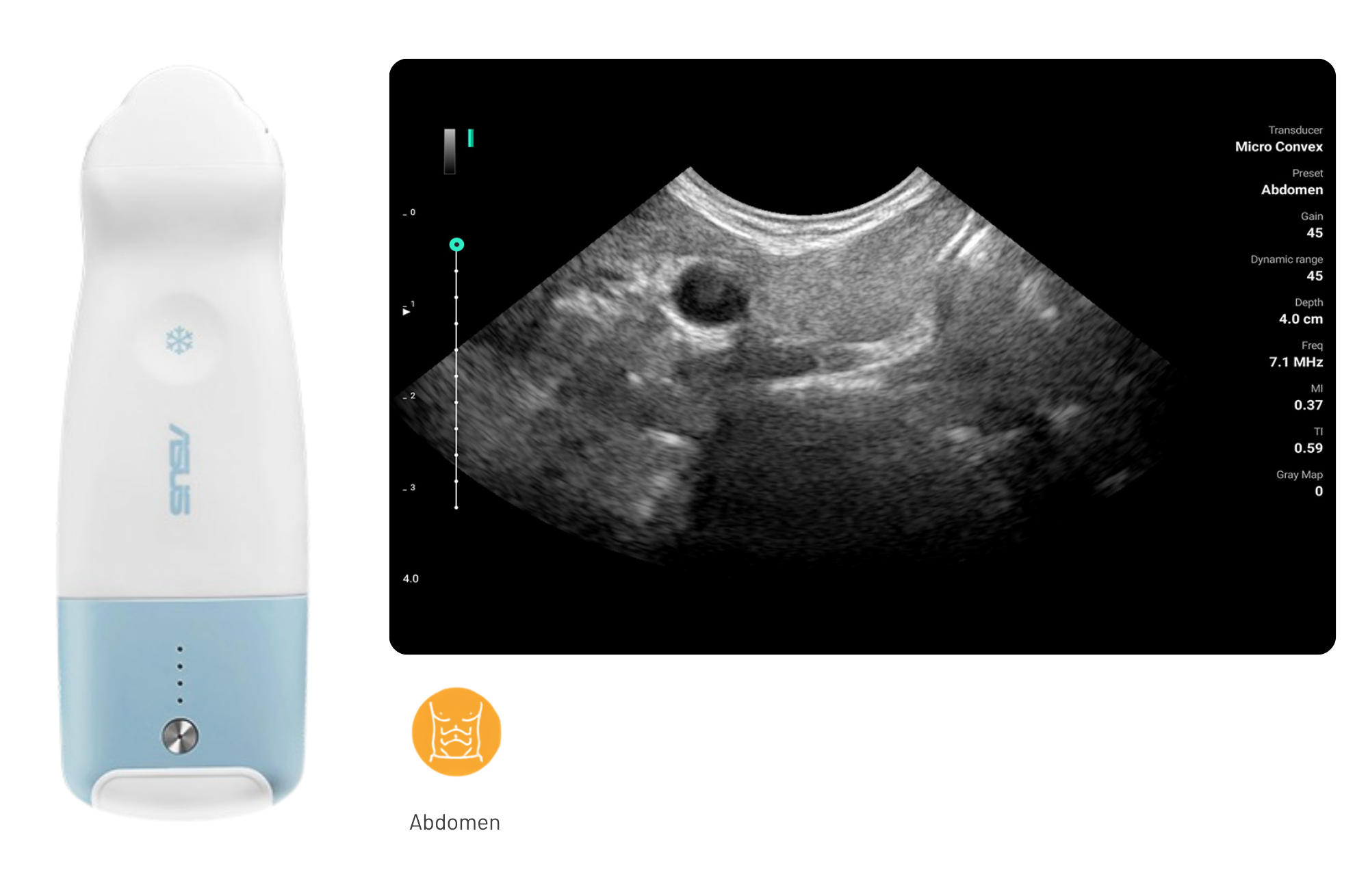

LU800M - Microconvex

Frequency: 3.6 - 8.5MHz
Max depth: 12.6cm
Field of view: 100°

A small-footprint probe engineered for cardiac and deep abdominal imaging. Its narrow beam is well suited for echocardiography and scanning through intercostal spaces or other limited acoustic windows.

LU800PA - Phased Array

Frequency: 1.3 - 3.7MHz
Max depth: 30cm
Field of view: 90°

A small-footprint probe engineered for cardiac and deep abdominal imaging. Its narrow beam is well suited for echocardiography and scanning through intercostal spaces or other limited acoustic windows.

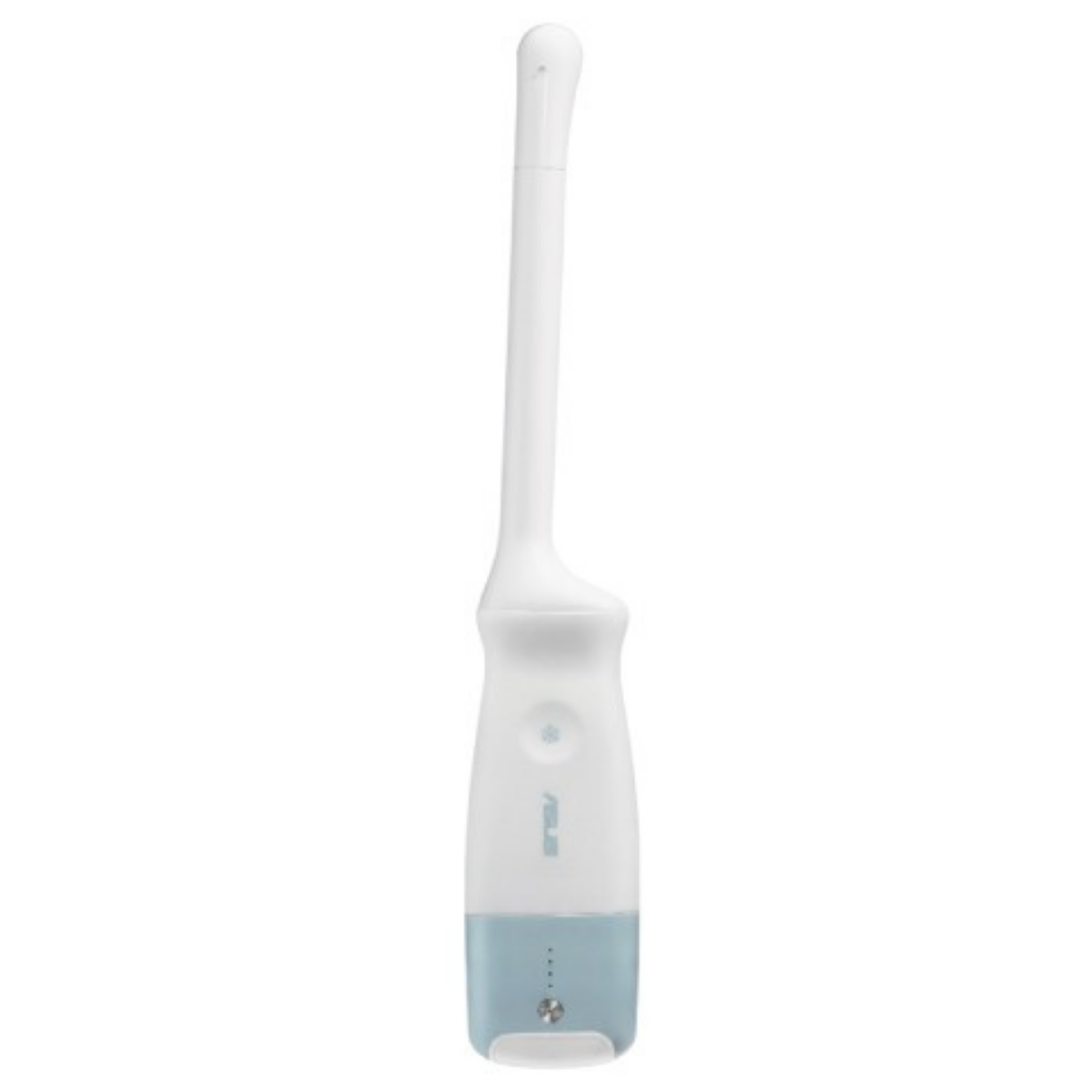

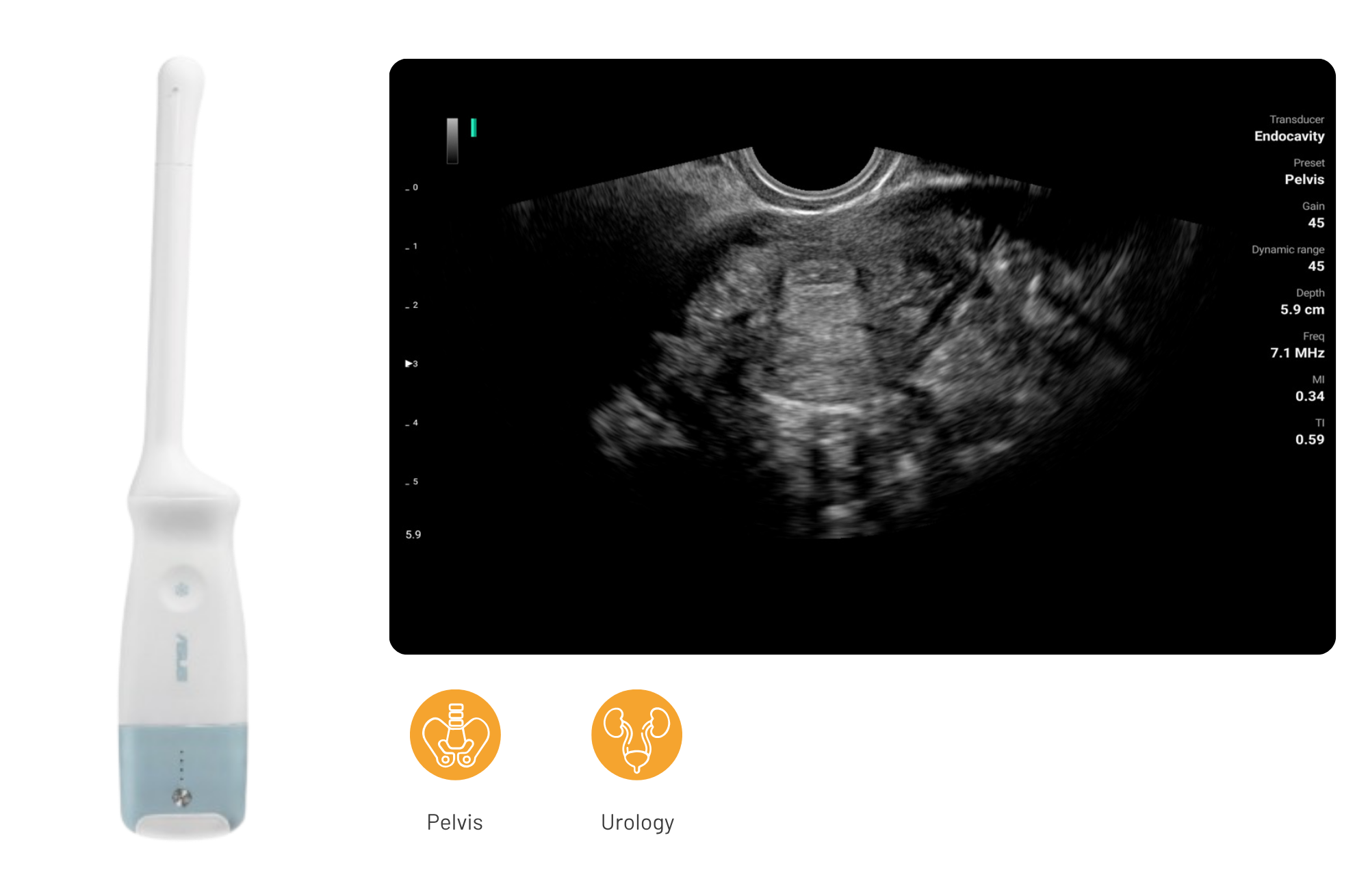

LU800E - Endocavity

Frequency: 3.6 - 8.5MHz
Max depth: 15cm
Field of view: 151°

An internal probe designed for high-resolution imaging of pelvic and reproductive structures. Commonly used in obstetric, gynecological, and urological examinations, including prostate assessment.

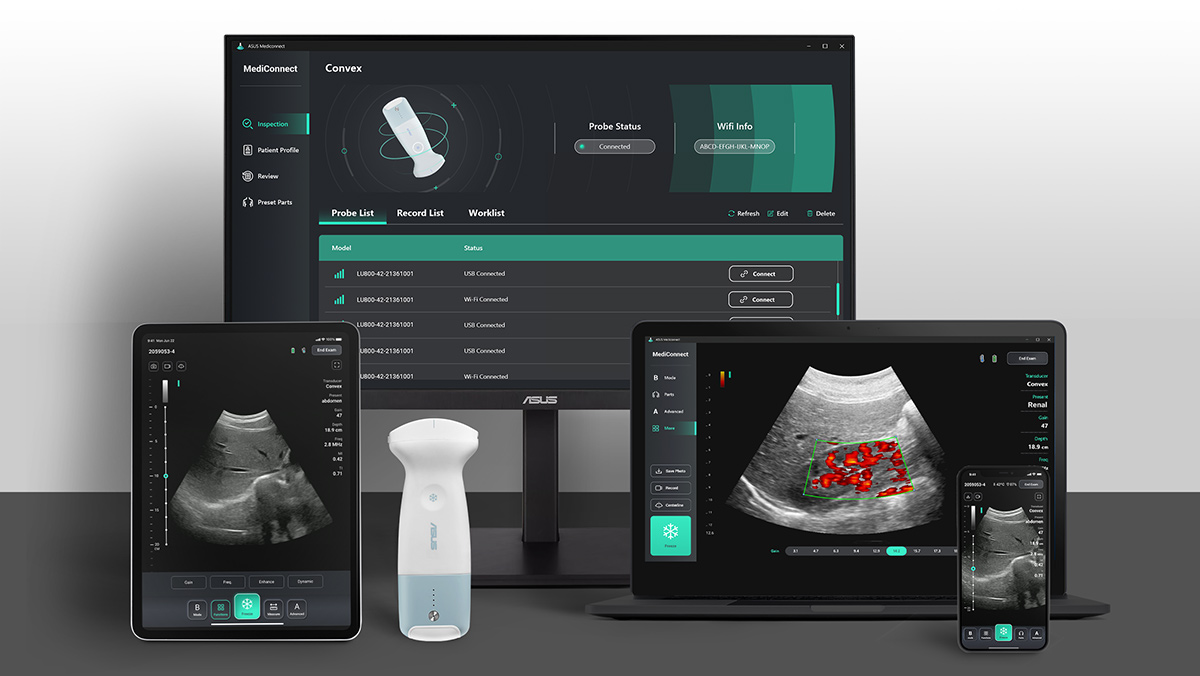

Pair with any device

The ASUS Handheld Ultrasound pairs with any device running the ASUS MediConnect App — mobile phones, tablets, laptops, and desktops. No special monitor required. Connect the probe, launch the app, and scan directly on the screen you already have in hand.

ASUS Handheld Ultrasound

Anytime, Anywhere

Ultrasound Scans

Wireless

Long battery life

Lightweight

ASUS MediConnect App

Wireless

Long battery life

Lightweight

MediConnect App

LU800 Series

LU800 Series

LU800L - Linear

Frequency: 4.2 - 12.5MHz
Max depth: 12.6cm

A high-frequency probe designed for superficial imaging. Ideal for vascular access, musculoskeletal structures, and shallow anatomical assessments where detail close to the skin surface matters.

LU800C - Convex

Frequency: 2 - 5MHz
Max depth: 30cm
Field of view: 60°

A wide-field, lower-frequency probe built for deeper imaging. Suitable for abdominal scans, obstetric and gynecological assessments, and general-purpose examinations that require a broader field of view.

LU800M - Microconvex

Frequency: 3.6 - 8.5MHz
Max depth: 12.6cm
Field of view: 100°

A small-footprint probe engineered for cardiac and deep abdominal imaging. Its narrow beam is well suited for echocardiography and scanning through intercostal spaces or other limited acoustic windows.

LU800PA - Phased Array

Frequency: 1.3 - 3.7MHz
Max depth: 30cm
Field of view: 90°

A small-footprint probe engineered for cardiac and deep abdominal imaging. Its narrow beam is well suited for echocardiography and scanning through intercostal spaces or other limited acoustic windows.

LU800E - Endocavity

Frequency: 3.6 - 8.5MHz
Max depth: 15cm
Field of view: 151°

An internal probe designed for high-resolution imaging of pelvic and reproductive structures. Commonly used in obstetric, gynecological, and urological examinations, including prostate assessment.

Pair with any device

The ASUS Handheld Ultrasound pairs with any device running the ASUS MediConnect App — mobile phones, tablets, laptops, and desktops. No special monitor required. Connect the probe, launch the app, and scan directly on the screen you already have in hand.
